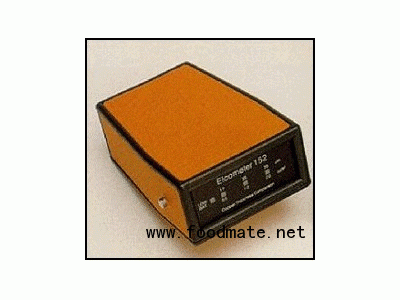

Designed specially for the needs of the circuit board industry, the Elcometer 152 is the smallest copper thickness comparator available giving instant readings. Simple to use, the comparator is placed on the copper surface: the thickness grade is automatically indicated in the clear L. E. D. display windows. The 152 Copper Comparator offers a quick, quality co
ntrol check in a compact, cost effective unit. Sample checking can be quickly carried out prior to despatch of large co
nsignments of laminate Cost effective alternative to expensive thickness checking by microsectioning or beta-backscatter methods Co
nvenient to use, battery operated & switches off automatically when not in use Robust pocket sizedElcometer 152 Copper Comparator
| Model | Description | Part Number |
| Elcometer 152 | Elcometer 152 Copper Comparator | A152---1A | |
| Range | ½ oz/square foot (17 microns), 0.75 oz/square foot (26 microns), 1 oz/square foot (35 microns) and 2 oz/square foot (70 microns). Double-sided laminate must be more than 1.5mm thick |
| Display | 4 LED's for measurement, 1 LED indicating battery status |
| Dimensions | 70mm x 36mm x 105mm (2.75 x 1.42 x 4.13") |
| Weight | 220 g (7.8oz) |
| Operating Temperature | +5°C to +40°C (41°F to +104°F) |
| Power Supply | 1 x 9V (I.E.C. 6F22) or equivalent |
| Battery Life | 4000 measurements minimum |
| Minimum Measurement Area | 10mm (0.4") Diameter |
| Instrument Case | Black ABS Plastic |
