進口電動管夾閥質量|型號

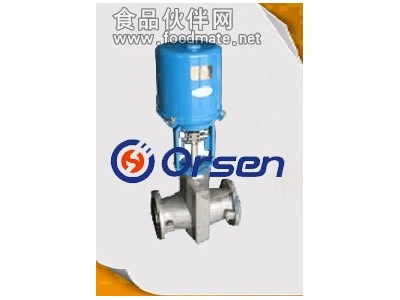

進口電動管夾閥  Electric Pinch Valve
進口電動管夾閥是以電動裝置為驅動源，來對閥門進行開啟和關閉，可以實現遠程控制的管夾閥
imported electric pipe clamp valve uses electric device driver source, to open and close the valve, can realize the remote control of the pipe clamp valve,
進口電動管夾閥結構組成由電動執行器、左右鑄鐵、碳鋼、不銹鋼閥體、橡膠管套、大小閥桿、閘板、上下導柱等零件組成。
imported electric pipe clamp valve structure composed of electric actuator, cast iron, carbon steel, stainless steel or rubber sleeve, valve body, valve, gate size, upper and lower guide pillars and other parts.
電源電壓 AC220±10%，50HZ   The power supply voltage AC220 ± 10%, 50HZ
耗電功率（額定負載時）  Power consumption ( rated load )
格A型執行器 50VA；規格B型執行器 150VA；規格C型執行器 220VA
A type 50VA actuators; specifications of B 150VA actuators; specifications of C actuator 220VA
輸入信號 DC4～20mA或 輸出信號 DC4～20mA（負載電阻500Ω以下）或DC1～5V
The input signal of DC4 ~ 20mA or DC4 ~ 20mA output signal ( the load resistance is less than 500 ) or DC1 ~ 5V
基本誤差：±1% ；回差≤1% ；死區≤1%  The basic error:± 1%; error≤ 1% dead≤ 1%;
工作行程調整范圍 “零點”±25%；“行程”20%～
Working stroke adjustment range of " zero "± 25% " travel " from 20% to ;
防護等級 IP55  Protection class IP55
隔爆等級 Exd II BT4  Explosion-proof grade Exd II BT4
過載保護 規格A、B型執行器可任選，規格C型系列執行器必配
Overload protection specifications A, B actuators can be optionally, specifications of C series actuators must match
產地：德國  Origin: Germany
產品品牌：德國Orsen奧爾申 The product brand: German Orsen
德國奧爾申電動管夾閥優點  The German OHL Shen electric pipe clamp valve advantages
采用進口電動執行器，電壓有220V,380V，電動執行器扭矩大，反應快，噪音低，使用壽命長，可實現無人遠程控制，實現作業效率。
imported electric actuator advanced, voltage is 220V, 380V, electric actuator torque, quick response, low noise, long service life, can realize unmanned remote control, to achieve operating efficiency.
